Walker Filtration CSTD016N-A (MDD016N) CondenSmart Timer Drain Valve | 1/2" NPT

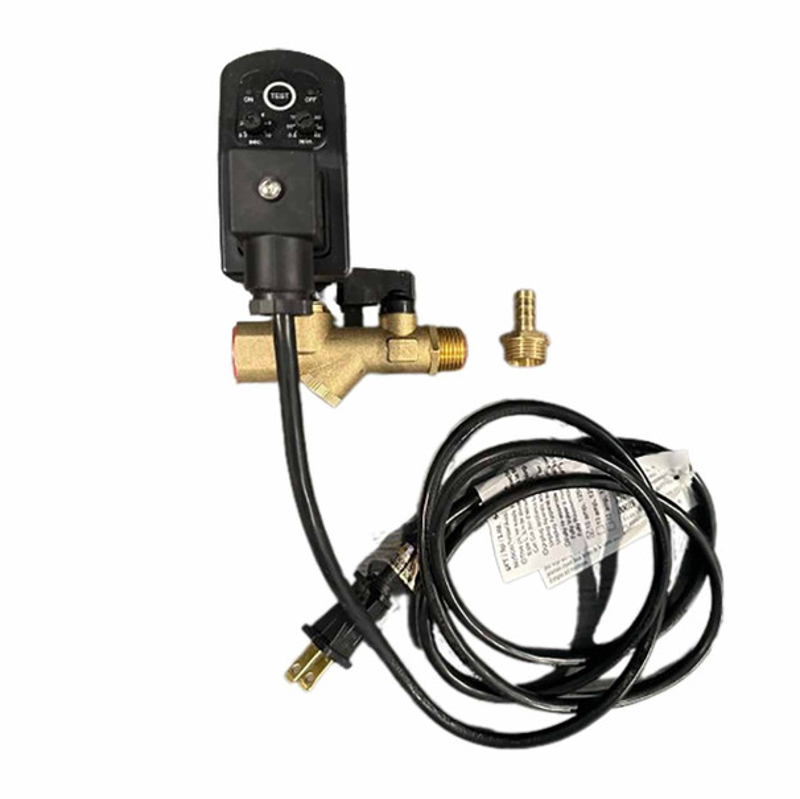

Keep your compressed air system running smoothly with the Walker Filtration CSTD016N-A (MDD016N) Electronic Timer Drain. This heavy-duty, automatic drain valve is engineered to dependably discharge oil-contaminated condensate from air lines, receivers, and separators, protecting your downstream equipment from moisture damage.

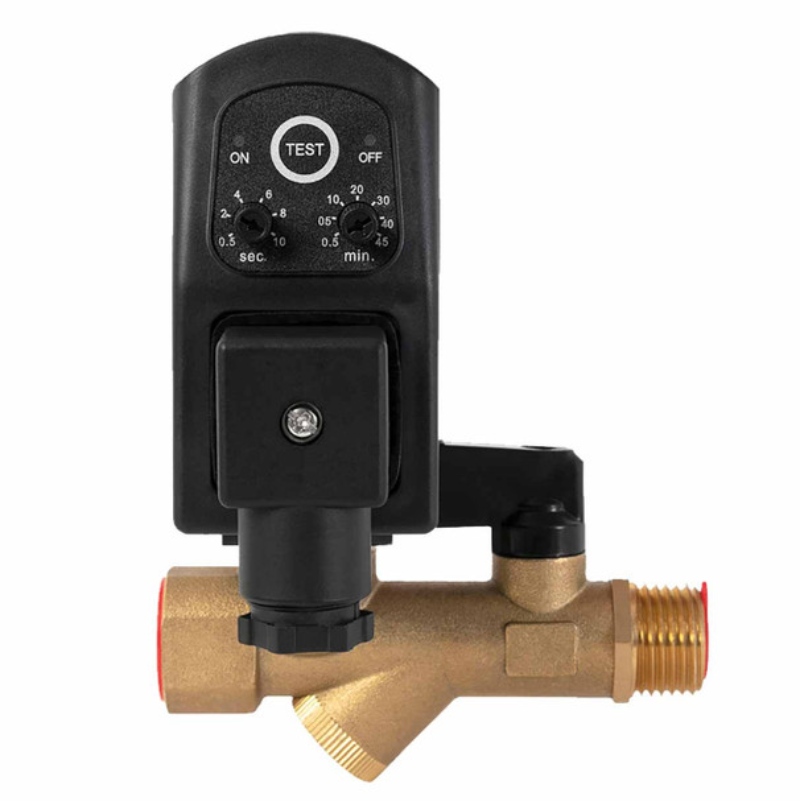

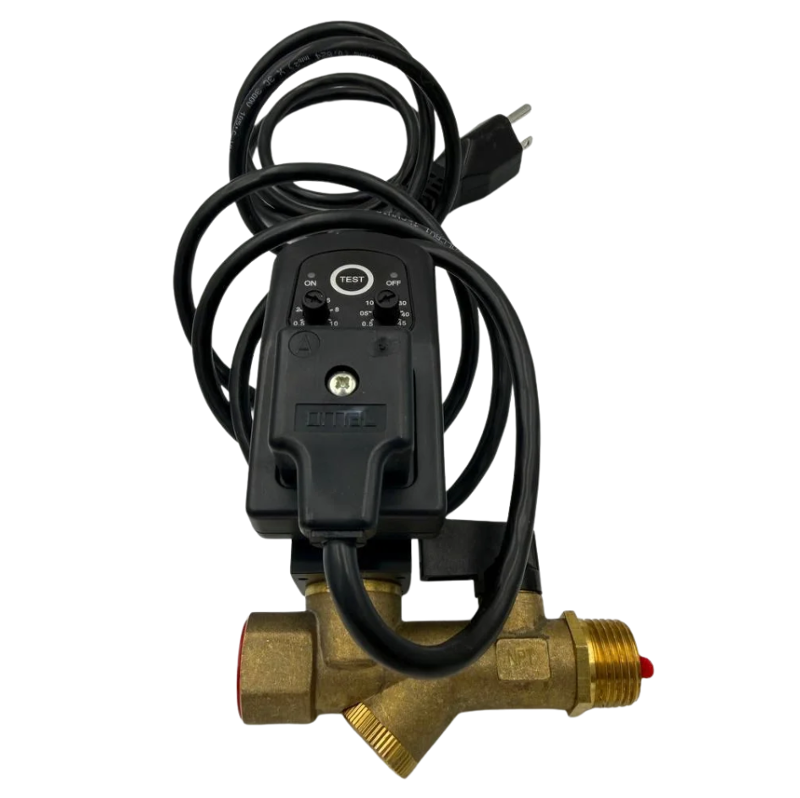

Featuring a smart, all-in-one design, it combines an adjustable electronic timer, a heavy-duty solenoid valve, a protective internal strainer, and a shut-off ball valve into a single compact unit. The integrated strainer traps rust, scale, and debris before they can clog the orifice, while the built-in isolation valve allows you to service the filter screen safely without depressurizing your entire air system.

Key Features

• Automatic Condensate Removal: Fully programmable, cyclical draining minimizes compressed air loss.
• Integrated Strainer: Traps solid particles to prevent valve clogging and extend equipment life.
• Built-In Isolation Ball Valve: Offers quick, safe access to the filter screen for fast maintenance.
• Adjustable Dual Timer: Easily customize the exact "Time-On" and "Time-Off" frequencies to match your system's moisture load.
• Rugged Construction: Rated for industrial working pressures up to 232 psig (16 barg).

Technical Specifications

• Connection Size: 1/2" NPT
• Maximum Pressure: 232 psig (16 barg)
• Drain Type: Timer-Controlled Electronic Solenoid
• Compliance: CE and UL approved components
