AIR REEL BLUE SD10 SERIES 3/8" X 50' HOSE
Return to Hoses & Fittings

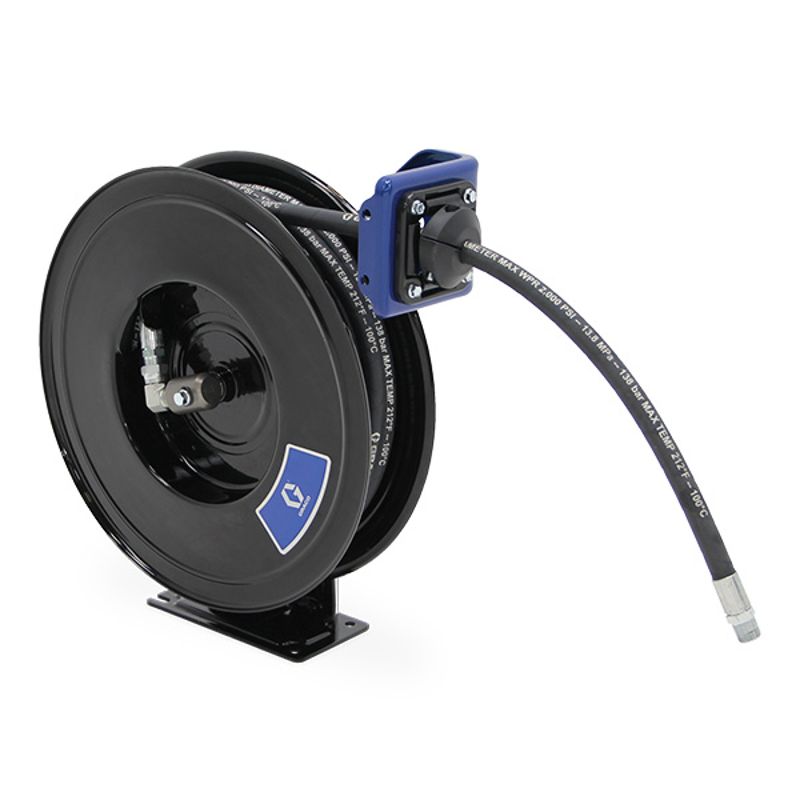

- GRACO SDL25B (Formerly HPL25B) 3/8″ X 50′ HOSE REEL FOR AIR, WATER, ANTI-FREEZE, WINDSHIELD WASHER FLUID, SD 20 Series Reel, Arm in Overhead Mount Position
- Engineered for Everyday Use. The SD line of hose reels feature Graco durability, performance and valve built into every reel. With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor exposure.
- Full-Flow Swivel. Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop.
- Adjustable Arm. Easily change to one of six arm positions to fit your application.
- Large Hose Capacity with Small Profile. Compact pedestal and spool fits into tight spaces.
- Durable Finish. Baked-on enamel finish (six colors available) protects reel from corrosion.
Technical Specifications
| Application | Air, Water, Antifreeze, WWS |
|---|---|
| Color | Metallic Blue |
| Frame Type | Single Pedestal |
| Hose Inside Diameter (in) | 3/8 |
| Hose Length (ft) | 50 |
| Hose Reel Type | Reel with Hose |
| Includes Hose | Yes |
| Inlet Size (in) | 1/2 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°F) | 190 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Temperature (°F) | -20 |
| Model | SDX |
| Mount Location | Overhead Mount |
| Outlet Size (in) | 3/8 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPT |
| Overall Height (in) | 19.5 |
| Overall Length (in) | 17.1 |
| Overall Width (in) | 7 |
| Recommended Environment | Indoor, Limited Outdoor |
| Recommended Fluid Type | Air, Water, Antifreeze, WWS |
| Reel Thread Type | NPT |
| Series | 10 |
| Type | Spring-Rewind Reel |
| Wetted Parts | Stainless Steel, Anodized Aluminum, Nitrile Rubber |
