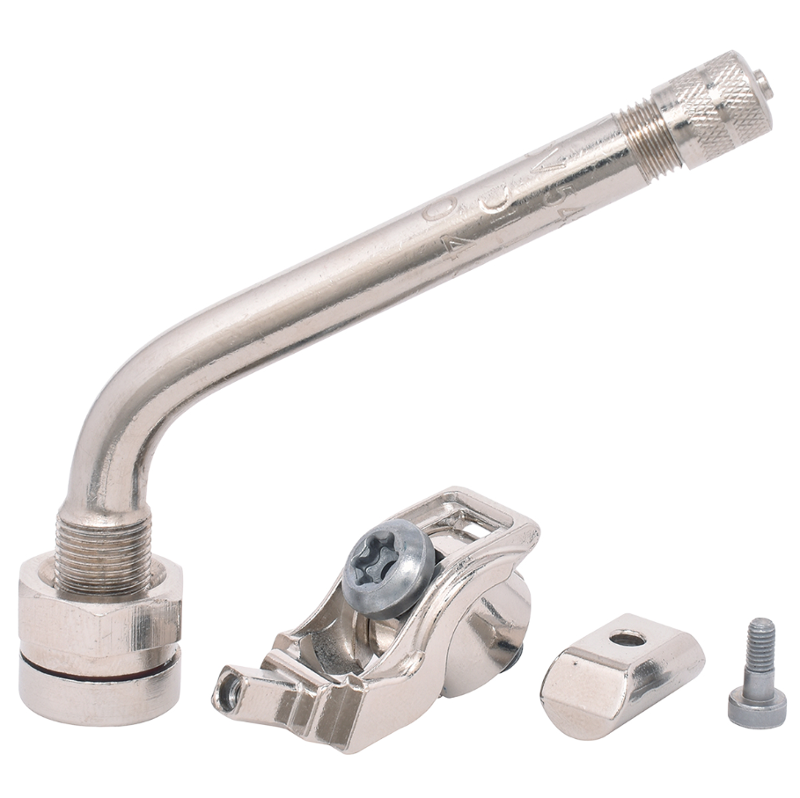

Upgrade or replace your tire assembly hardware with the Dill DV-545D (TR545D) Precision Clamp-In TPMS Valve Stem. Engineered specifically for commercial fleets, dually trucks, and custom aluminum or alloy wheels, this premium valve stem ensures an airtight seal and effortless servicing in restricted spaces.
Featuring a unique 60-degree bend, it maximizes air-chuck clearance on complex wheel profiles while keeping your internal tire pressure monitoring sensor securely anchored.

Key Features

• 60° Angled Clearance: Designed specifically to clear tight wheel wells, deep-dish designs, and dual-wheel setups, making inflation and pressure checks hassle-free.
• Direct Sensor Interface: Pre-tapped with a precision M6 internal thread to accept direct-mount TPMS sensor screws seamlessly.
• Heavy-Duty Construction: Built from premium nickel-plated machined brass to deliver superior resistance against corrosion, road salt, and harsh weather.
• Leak-Proof Seal: Outfitted with high-grade, heat-resistant O-rings and grommets to maintain reliable tire pressure under heavy loads.

Technical Specifications

• Part Number: Dill DV-545D (Industry Standard TR545D)
• Valve Hole Compatibility: 0.390 inches (approx. 9.9 mm)
• Bend Angle: 60 degrees
• Thread Type: M6 tap for sensor screw
• Material: Nickel-plated brass
• Ideal For: Aluminum fleet vehicles, dually trucks, custom alloy wheels, and commercial transport.
