VALVE STEM TRK BRASS GROMMET .625 HOLE 3-1/8"
Return to Valve Hardware

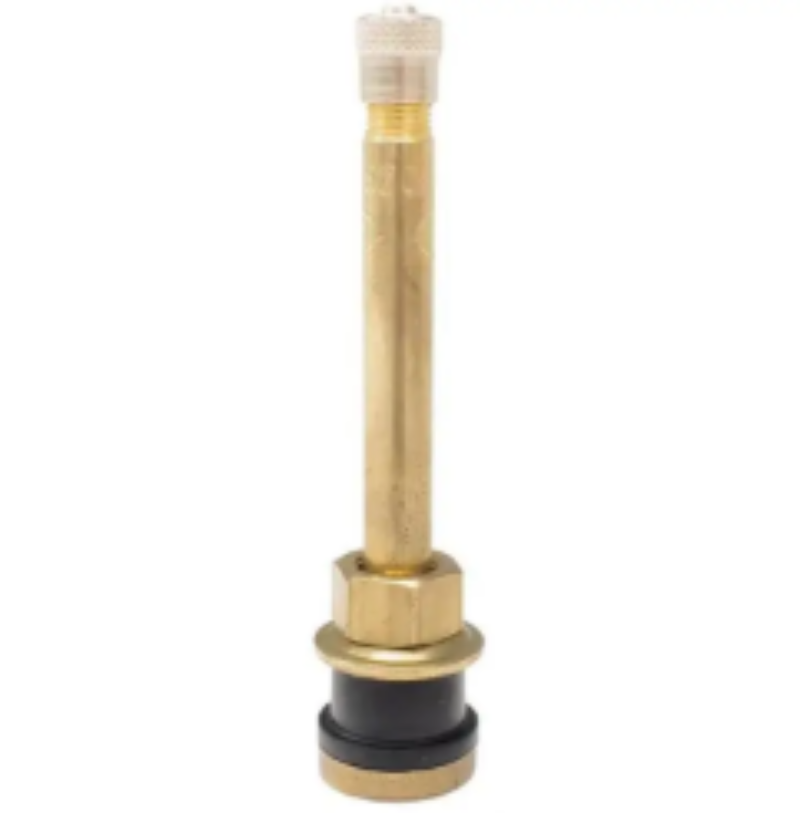

The TR570 Metal Clamp-In Heavy-Duty Truck Valve Stem is engineered for high-performance and maximum reliability in commercial, industrial, and heavy-duty tubeless tire applications. Built from premium solid brass, this straight valve stem provides an airtight seal and superior durability under extreme road conditions, making it an industry standard for long-haul fleet maintenance.
Key Features & Benefits
- Premium Brass Construction: Resists corrosion and stands up to harsh environmental elements for a longer service life.
- High Pressure Rating: Handles cold inflation pressures up to 150 PSI, perfect for heavy-duty commercial applications.
- Secure Clamp-In Design: Uses a heavy-duty nut, metal washer, and a robust EPDM rubber grommet to create a leak-proof mechanical seal.
- Universal Fitment: Designed to seamlessly fit standard 0.625" (5/8-inch) rim holes on steel and aluminum commercial wheels.
Technical Specifications
- Industry Part Number: TR570
- Type: Straight metal clamp-in
- Effective Length: 3-1/8" (80 mm)
- Rim Hole Diameter: 0.625" (15.87 mm)
- Maximum Inflation Pressure: 150 PSI
- Recommended Installation Torque: 35 to 55 inch-pounds
Applications
Ideal for commercial trucks, semi-trailers, buses, agricultural machinery, and heavy industrial vehicles requiring a straight, high-pressure tire valve solution.
