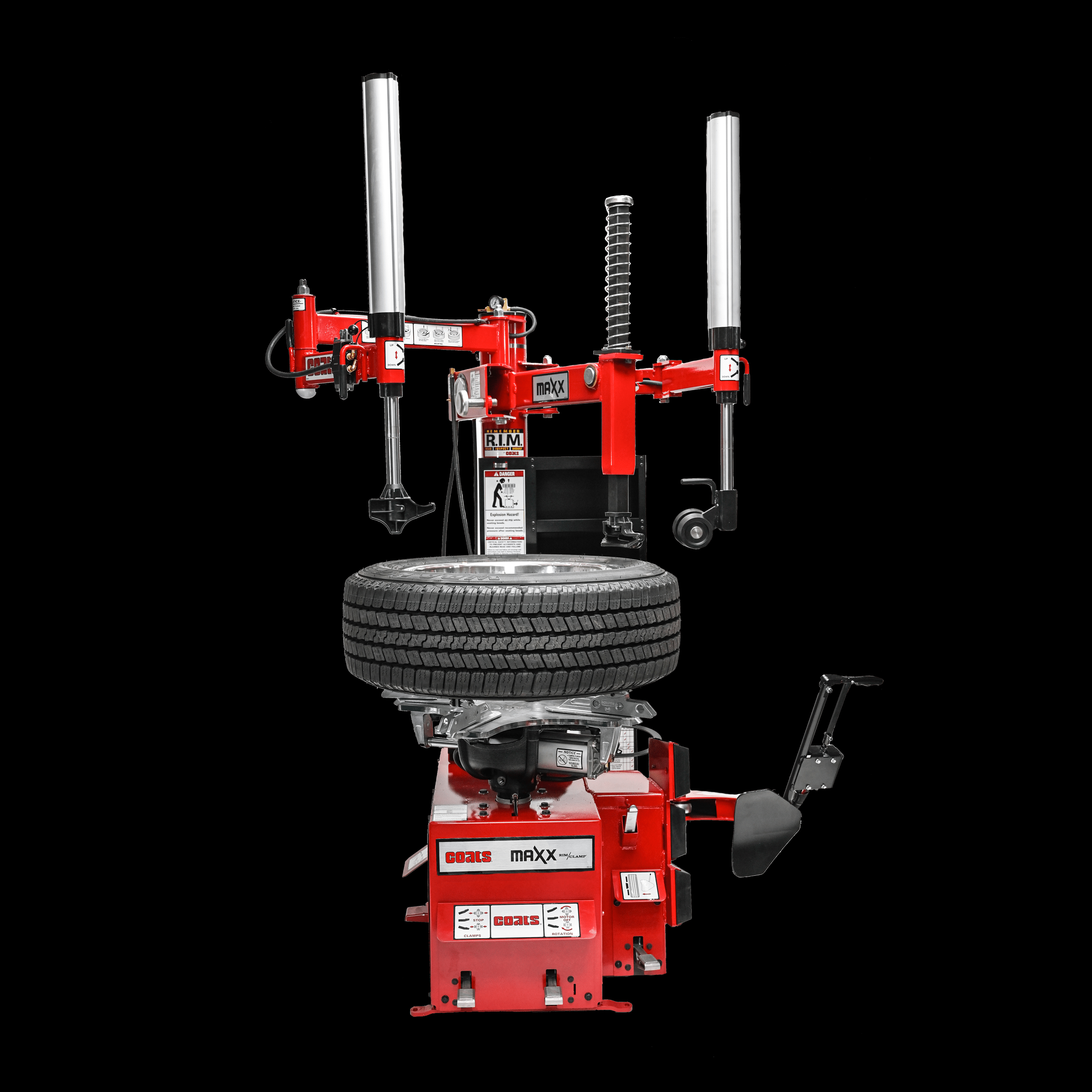

The Maxx 80 expands on the Maxx 70 platform by incorporating additional automation features, including the RoboRoller® system and enhanced bead-loosening controls. This model is an excellent choice for shops that regularly service larger wheel assemblies, lower-profile tires, and more demanding applications. If reducing technician fatigue and increasing efficiency are top priorities, the Maxx 80 represents a substantial upgrade over the Maxx 70.

KEY UPGRADES: (August 2025)

NEW Digital Air Gauge: The upgraded digital air gauge replaces the previous analog version. This enhancement improves accuracy and supports technician efficiency on the job.


REDESIGNED Air Chuck: The redesigned air chuck delivers better ergonomics and a stronger connection to the valve stem. This reduces the risk of air leaks and minimizes physical strain on the operator.

Taking the Hassle Out of the Hustle! Introducing the Maxx 80 - the core of our new premium tire changer line designed to handle even the toughest and most demanding jobs, as well as help you confidently handle delicate wheels with ease.

Built with Durability in Mind: Featuring brick-house rugged construction and an intuitive design engineered with direct customer feedback.

Best-In-Class Clamping Range:  Maxx 80 can tackle wheels from 6″ - 24″ in diameter and up to 16″ wide – out of the box! Anything from standard passenger car tires to 6″ lawn mower tires, all the way up to extreme 24″ wheel assemblies.

Dual Nozzle Bead Sealing System: Increased air flow to seal tough beads more efficiently. More Air + More Quickly = Jobs Done Faster

Dual Hand or Foot Operated Bead Loosener: Different technicians have different work styles. Giving them a choice (hand or foot) of how they do the work lets them get it done on their terms.

A Perfect Balance of Speed and Power: Our rock-solid 220V 2HP motor helps your shop keep up with ever-increasing customer demand. With a high torque 220V 2HP motor you can power through tough assemblies.

Grip Max 2.0 Clamps: Clamp passenger car, light truck or extreme custom applications without changing anything for maximum time savings and damage avoidance.

Durable and Reliable Chassis: Our robust chassis is not only capable of clamping extreme assemblies, but it was also tested up to 250,000 bead breaking cycles for ultimate durability in the harshest working environments to make sure it was up for the challenge.

No Index Tabletop: Save time by not having to index the tabletop when working on large assemblies, reducing pedal presses and allowing techs to keep moving.

PATENTED TOOL HEADS: Our patented tool heads work hard so you don’t have to.The Maxx 70 features our Polymer Duckhead and Robo Arm to make changing tires a breeze.

• Robo-Roller Helper Device: Tool that provides additional power when mounting difficult tire assemblies and prevents the bead from rolling back over the mount tool.
• Robo-Arm Bead Depressor Helper Device: Tool used to push the tire bead into the drop center of the rim, allowing for effortless mounting and dismounting of the tire.
• Polymer Duckhead: Tool used for mounting and demounting tires without damaging the rim.

WHEEL LIFT OPTION
Our Maxx Wheel Lift makes even the heaviest assembly easy to manage. Lifts to tabletop height of 29” with speed and ease. It can support wheel assemblies up to 150lbs at 150PSI and is operated via an easy-to-use foot pedal.

• Fast Operation
• Handles up to 150 lbs
• Lifts to Table-Top Height of 29"
• Easy Hands-Free Operation

Built in Nashville, Tennessee: Designed and built right here in the heartland of the USA, invest in a machine that can handle the toughest jobs and is backed by positive customer feedback and hardcore engineering.

Included Accessories:

• Coats 8183606 Bead Loosener Shoe Socks - 2
• Coats 85009048 Paste Lube Bracket & Brush
• Coats 8183061 Polymer Duckhead
• Coats 8184432 High Spoke Duckhead Mount/Demount Tool
• Coats 8182788 Steel Duckhead Mount/Demount Tool
• Coats 85612106 GripMax 2.0 Clamps - 4
• Coats 8184126EX Steel Clamps
• Coats 85000783 LiftTool Socks - 10
• Coats 85610105 Premium Storage Cabinet

Specifications:

Coats Model Number	MAXX 80
Coats Part Number	Electric 220V: 800MAXX80220 Electric 110V: 800MAXX80 Air: 800MAXX80A
Wheel Handled	Alloy and Steel for Car and Light/Medium Truck
Rim Diameter	6″ - 24″ External
Maximum Tire Diameter	50″
Maximum Rim Width	16″
Bead Loosening Width	Up to 22″ Wide
Wheel Clamping System	4 Clamps, Air Cylinder Operated
Helper Devices	Robo-Arm, Robo-Roller, Polymer Duckhead
Bead Seating Air Volume	5.4 Gallons in Tower
Air Drive System	Up to 4 HP (Max air motor HP dependent on shop air pressure)
Electric Drive System	220V 2 HP Electric, 110V Electric Motor or Air Motor
220V Electric Requirements	220V, 10 Amps, 1PH, NEMA L6-20
Footprint (WxHxD)	74″ x 86″ x 44″
Ship Weight	850 lbs. Low center of gravity for stability
Warranty	3 Year Parts, 6 Months Labor
