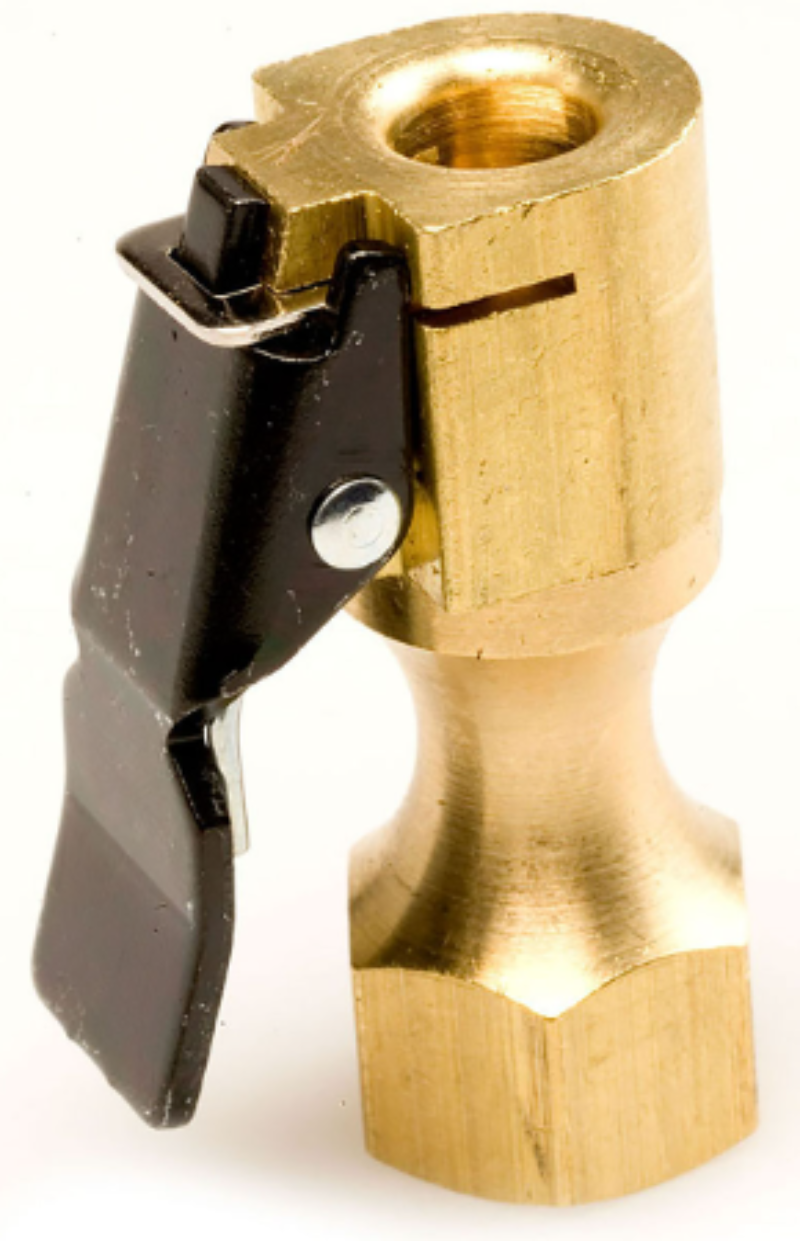

The Haltec CH-360 is a premium, commercial-grade straight tire air chuck engineered for heavy-duty service and high-pressure inflation applications. Designed with a robust European-style locking clip, it provides a secure, hands-free connection to standard tire valve stems, eliminating the need to manually hold the chuck in place during inflation cycles.

Key Specifications

• Fitting Type: 1/4" Female National Pipe Thread (NPT).
• Maximum Pressure: Rated for safe operation up to 200 PSI.
• Body Construction: Solid brass fitting with a durable spring-steel locking mechanism for long service life.
• Flow Configuration: Closed-jaw system (internal check valve cuts off airflow automatically when disconnected from the valve stem; ideal for direct, un-metered air lines).

Product Overview & Performance

• Hands-Free Locking: Heavy-duty spring clip snaps firmly onto the valve stem threads, preventing air leakage and keeping the technician safely back from the tire assembly during inflation.
• Straight-On Approach: The straight body alignment allows for a direct, effortless push onto hard-to-reach valve stems.
• Serviceable Seals: Equipped with a high-durability internal rubber washer (Replacement Part: Haltec 10140) to maintain an airtight seal over extended shop use.
• Professional Grade: Extensively used in commercial tire shops, fleet maintenance facilities, and industrial service trucks requiring reliable sealing at high pressures.
