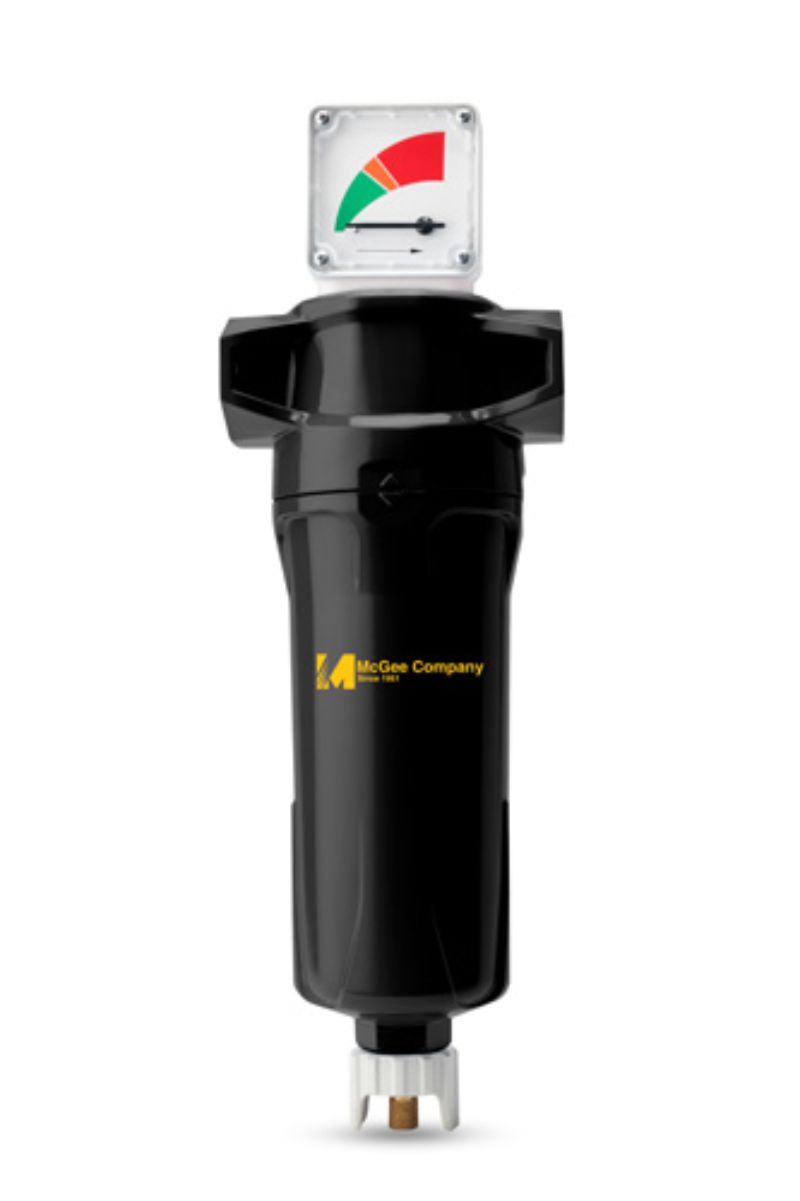

1" FILTER AIR 1-MICRON COALESCER 1" NPT
Return to Air Systems
1" FILTER AIR 1-MICRON COALESCER 1" NPT
Our Coalescing & Particulate Filters deliver continuous removal of liquid and particulate contaminants that conventional filters simply can’t handle. With five grades of filter elements available, from general purpose to high-efficiency coalescing, particulate and activated carbon vapor removal, every solution is tailored for precision and purpose.
Engineered to meet the demands of almost every application, this is filtration designed not just to perform, but to empower. And because world-class performance shouldn’t come at the cost of efficiency, our filters are optimised to reduce pressure loss and keep operational costs consistently low.
Built to align with ISO 8573-1: 2010 air quality standards, our filters retain oil aerosols and particles down to 0.01 micron, setting the benchmark for clean, high-quality compressed air.
Our Coalescing & Particulate Filters deliver more than technical excellence - they deliver the confidence that comes from knowing your air quality is protected, your performance is optimised, and your reputation is secure.
| Grade | X25 | X5 | X1 | XA | AC | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Particle removal | 25 micron | 5 micron | 1 micron | 0.01 micron | 0.01 micron | |||||
| Maximum particle size class** | - | 4 | 3 | 1 | 1 | |||||
| Maximum oil content** | - | 4 | 3 | 1 | 1 | |||||
| Maximum oil carryover at 20°C (68°F) | 10 mg/m³ | 5 mg/m³ | 0.3 mg/m³ | 0.01 mg/m³ | 0.003 mg/m³ | |||||
| Pressure loss - clean & dry | 30 mbar | 0.4 psi | 40 mbar | 0.6 psi | 55 mbar | 0.8 psi | 85 mbar | 1.2 psi | 115 mbar | 1.7 psi |
| Pressure loss - saturated | 50 mbar | 0.7 psi | 75 mbar | 1.1 psi | 125 mbar | 1.8 psi | 125 mbar | 1.8 psi | N/A | N/A |
| Pressure loss - element change | 12 mths | 8000 hrs | 12 mths | 8000 hrs | 12 mths | 8000 hrs | 12 mths | 8000 hrs | at least every 6 mths | |
| Maximum temperature - automatic drain | 80°C | 176°F | 80°C | 176°F | 80°C | 176°F | 80°C | 176°F | 50°C*** | 122°F*** |
| Maximum working pressure - automatic drain | 16 barg | 232 psig | 16 barg | 232 psig | 16 barg | 232 psig | 16 barg | 232 psig | 16 barg | 232 psig |
| Maximum temperature - manual drain | 120°C | 248°F | 120°C | 248°F | 120°C | 248°F | 120°C | 248°F | 50°C*** | 122°F*** |
| Maximum working pressure - manual drain | 20.7 barg | 300 psig | 20.7 barg | 300 psig | 20.7 barg | 300 psig | 20.7 barg | 300 psig | 20.7 barg | 300 psig |
| Element end cap colour | Black | Green | Red | Blue | Black | |||||
| ** to ISO 8573-1: 2010 *** Maximum recommended operating temperature 25ºC (77ºF) | ||||||||||
MIFC105
4.894
