10 TON BODY AND FRAME REPAIR KIT
Return to Lifting Equipment

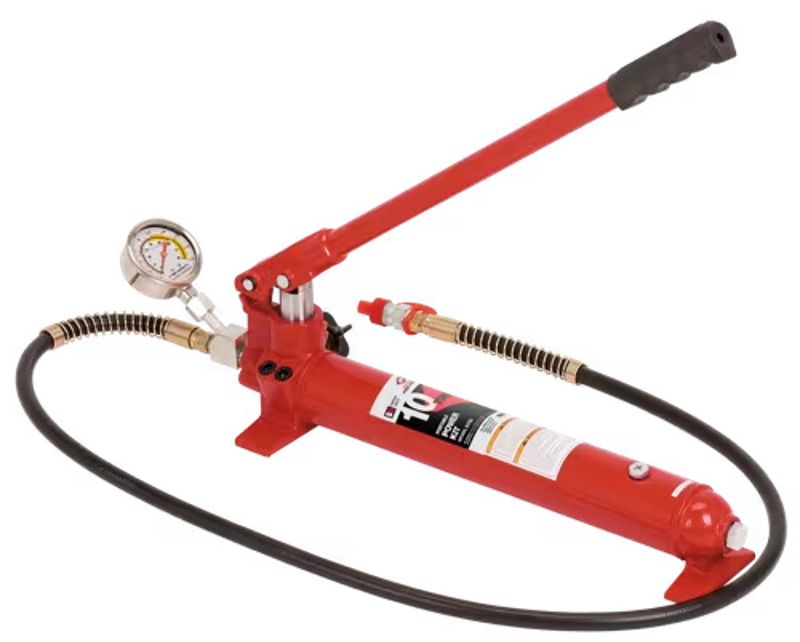

Body and frame repair kits are commonly used in fleet and vehicle body repair tasks such as bumper damage and body panel work. Sets include a hydraulic hand pump, cylinder, and a popular assortment of attachments.
- Ideal for bumper damage, body panel, and other automotive and heavy duty applications
- Universal design allows use with AFF brand and other style body and frame repair kits
- Comes packaged in a blow mold or metal case
| Attributes | Double Braided Hydraulic Hose, Auto Air Bleed Pump, Dual Piston Pump |
|---|---|
| Capacity (T) | 10 |
| Standards | ASME/PASE 2019 |
| Closed Height (in.) | 12.68 |
| Compatible with | Other Branded Kit Components |
| Diameter - Inner Ram (in.) | 1.77 |
| Duty Level | Super Duty |
| Effective Area (in²) | 2.46 |
| Extension Tubes Length (mm/in.) | 43.30mm / 1.7", 104.33mm / 4.1", 143.70mm / 5.7", 204.72mm / 8.1" |
| Hose Length (ft.) | 5 |
| Includes | Heavy Duty Blow Mould Case, Pressure Gauge |
| Material Finish (Pump Core and Piston Rod) | Chrome Plated |
| Max. Operating Pressure (PSI) | 8937 |
| Net Weight (lb.) | 66.14 |
| Oil Output Port Thread | 3/8-18 NPT |
| Pump Capacity (T) | 10 |
| Ram Capacity (T) | 10 |
| Ram Extended Height (in.) | 17.8 |
| Rated Pressure (PSI) | 8937 |
| Warranty (years) | 1 Year Limited Commercial Warranty |
| Country Of Origin | China |
Out of Stock
817SD
